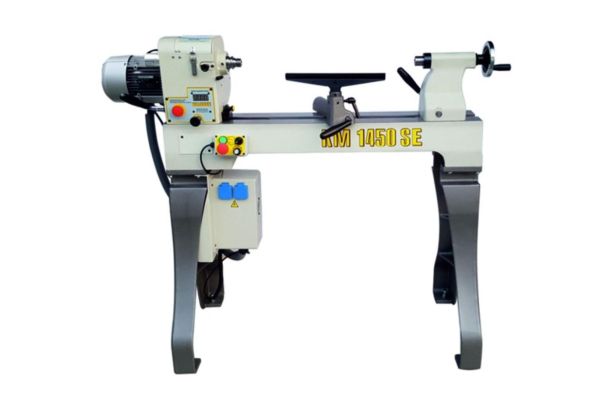

Killinger Woodturning Lathe KM1450 SE with Legs

Cast iron lathe bed ground and ribbed, headstock and tailstock from cast iron standard distance 720 mm can be extended with 450 mm bed extension lathe completely mounted, ready to use, simple to dismount

Safety-

- security locking ring at spindle optional to secure chucks if spindle turns reverse - Emergency off button centrically positioned at headstock - Zero-point-Adjustment at headstock for an exact alignment of tips no need to use a double-cone

- Outrigger (option) can be fixed simple within minutes, positionable in every position lengthways at lathe bed, no need of several fixing points The cranked, sturdy construction has an integrated supporting column to avoid vibrations if turning heavy parts

Technical Data- - centre distance 720 mm - centre height 200 mm - turning diam. 400 mm resp. 660 mm with outrigger and 460 mm if headstock is swivelled to ergonomical position - headstock infinitely swivelling and sliding along the bed - 6 fixing positions 0-270 ° - exact "Zero-Point-Adjustment at headstock - hollow spindle M 33/inner cone MT 2/Bo=10 mm, ground with large-sized maintenance free bearings - tailstock quill MT 2 groun, with laser scale, self- ejecting of live centre - three phase motor 2 hp/1,5 kW, electric mains 230 V/ 1ph - spindle speed infinitely variable 40 - 3.025 rpm/min. (3 steps) - digital display for rpm, variable positioning of control board with all functions spindle forward/reverse, on-off-button

- indexing with 36 divisions - sturdy cast iron tool support, tool rest from low-wear steel cast

Standard accessories-

- emergency off button at headstock, mobile box with magnet - zero-point-adjustment at headstock - tool rest support cast iron, bo=30 mm - tool rest steel-cast 350 mm, stem D=30 mm with adjusting ring - 4-prong mandrel MT 2/D=25 mm - live centre MT 2/60°

Weight/Dimensions-

weight 110 kg / with legs 180 kg length of lathe bed 1.150 mm/total length 1.450x600 mm CE-conform, subject to change without alteration
